Floating Point Numbers
Time Limit: 1 Second Memory Limit: 32768 KB

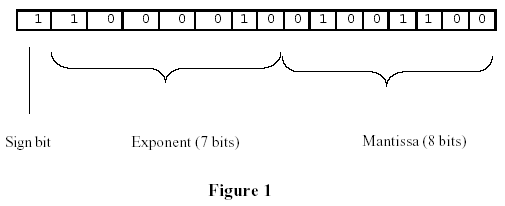

Floating point numbers are represented at the hardware level of most computer systems in normalized binary scientific notation. We will consider a hypothetical computer in which floating point numbers are represented in a 16-bit word. An example is shown in Figure 1. In the common Intel chips, the exponent of a float has 8 bits and the mantissa has 23 bits, otherwise the representation is the same as in Figure 1.
We will show that this particular example represents the number
whose usual decimal representation is -10.375.
The leftmost bit (the sign bit) is 1 if the floating point number is negative,
0 otherwise.
The next seven bits (1000010 in this example) represent the Exponent component
of the normalized binary scientific notation. The following two operations will
reveal the exponent's actual value:
Evaluate the binary number 1000010: it is 1*64+0*32+0*16+0*8+0*4+1*2+0*1 = 66.
Subtract the bias correction 63 from 66, which yields 3 as the actual value
of the exponent that we will use below.
(The purpose of the bias correction is to allow negative exponents. As long
as the exponent has seven bits, which will always be the case in this program,
the bias correction is 63 = 27-1 - 1.)
The remaining 8 bits (01001100 in this example) constitute the mantissa, which
is the fractional part of the normalized binary scientific notation. You will
see in the next step how it is used.
The sign bit, the mantissa, and the exponent are used to calculate the value
of the floating point number:
The period preceding the mantissa is the "binary point"
which has the same meaning as the decimal point in a decimal (base ten) representation.
In the normalized binary scientific notation there is only one binary digit
preceding the binary point, and it is always 1 (except if the floating point
number is the number zero). It is called the characteristic. Since it is always
1, it does not explicitly appear in the 16-bit representation of Figure 1.

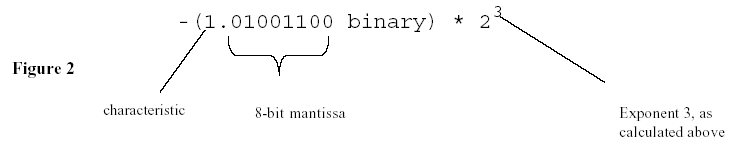

Since the number 1.01001100 is in binary, the digits to the right of the binary
point represent successive negative powers of 2. Therefore, the number shown
in Figure 2 can be re-written as
Here the result has been expressed using scientific notation (base
ten). Most programming languages would output this result as -1.0375e+001. The
use of a lower case e or upper case E, and the number of leading zeros in
the exponent can vary from one programming language to another.
An important exception: if all bits except the sign bit are zero, then the floating
point number is zero, regardless of the sign bit.
Input
The input contains an undetermined number of lines. Each line
contains, starting in column 1, exactly 16 printable characters which can be
any permutation of 0s and 1s. The first character represents the sign bit, the
next seven characters, the exponent, and the last eight characters, the mantissa
of a floating point number in normalized binary scientific notation according
to the conventions discussed on the preceding page.
Each floating point number read from the input will be written by your program
to the output file, one number per line.
Output
The following formatting conventions are required in your output:
The floating point numbers will be displayed in scientific notation (base ten).
Column 1 will either be blank (indicating a positive number or zero) or contain
a minus sign (indicating a negative number).
Column 2 will contain a digit.
Column 3 will contain the decimal point.
Columns 4 - 9 will contain six additional significant digits of the floating
point number.
The remaining columns will specify the exponent of scientific notation. The
sign and magnitude of the exponent must of course be correct, but the exact
format in which the exponent is displayed will be determined by the programming
language you use.
Sample Input
1100001001001100 0011111100000000 1011111110000000 0000000010101010 0011011111100000 1001111011100000 0101011001010101 0100011011101101 0111111111111111 1100001000101100 0000000000000000 1000000000000000
Sample Output
Program 6 by team X -1.037500e+001 1.000000e+000 -1.500000e+000 1.804180e-019 7.324219e-003 -2.182787e-010 1.117389e+007 2.465000e+002 3.682143e+019 -9.375000e+000 0.000000e+000 0.000000e+000 End of program 6 by team XSubmit
Source: Rocky Mountain 2000
